China 1325 Wood CNC Router For Furniture 4*8 Rotary Table

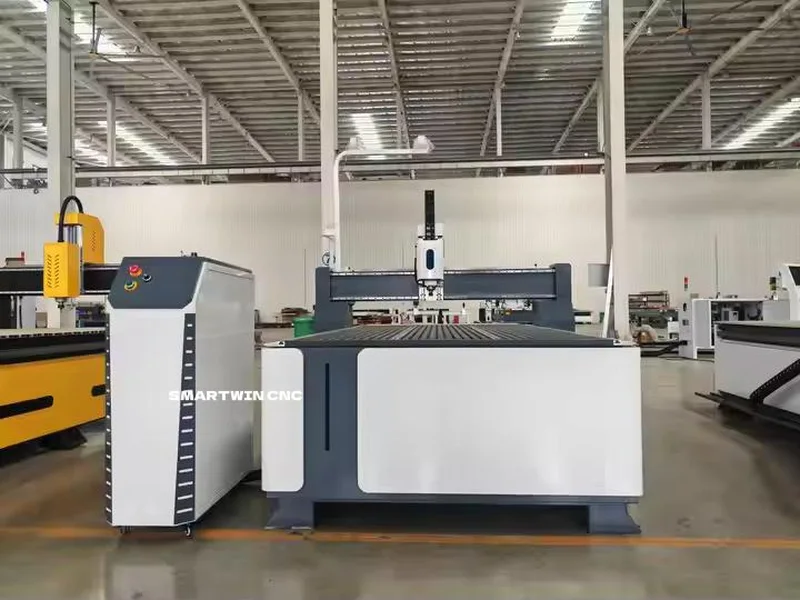

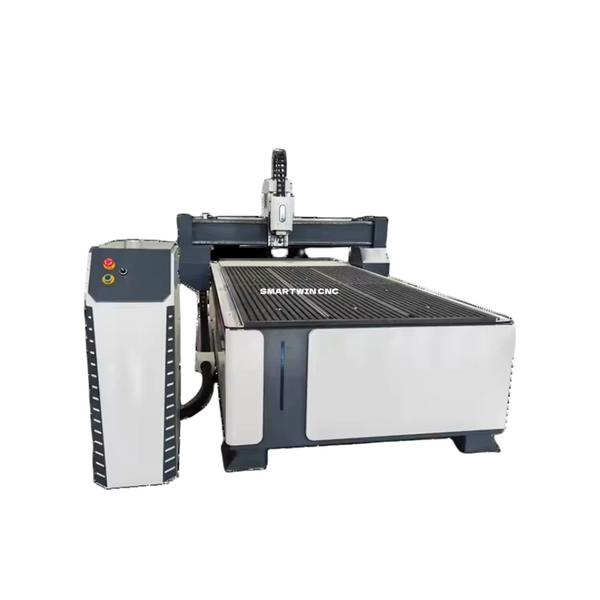

Introduction of 1325 wood furniture cnc router
The 1325 CNC router table measures 1300mm x 2500mm, also known as 4' x 8' or 48"inch x 96"inch. Named by the manufacturer, it features a maximum table size of 2500mm in length, 1300mm in width, and 200mm in height. The swm-1325 cnc wood router is the most common model for full-sheet projects, which is widely used in woodworking, including cabinet and door making, home decor, advertising, and sign making. The 1325 CNC router comes in various configurations, such as single spindle, dual head, multi-head, 3-axis, 4th-axis, 4-axis, 5-axis, and ATC with an automatic tool changer spindle.
Advantages and Benefits
- The rotary axis CNC Router Kit features a DSP industrial control system. It offers 4 axis linkage control with excellent stability, maintainability, and usability. This system can handle 3D machining of cylinders and the rotation of tetrahedrons, making it ideal for sculpting figurative statues and European furniture legs.
- The bed frame is made from thick-walled steel pipes. It has been designed using finite element analysis (FEA) to provide a rigid and stable platform for the machine tool. All bed components are stress-relieved before processing.
- This 1325 wood cnc router offers a high-precision ball screw for smooth movement and accuracy; a high-performance drive motor for speed and precision; a well-designed structure with high-quality accessories to reduce the failure rate; and breakpoint memory to retain the carving status during power outages, along with machining time forecasts.
- The high-quality linear guide imported from Taiwan has a lifespan ten times longer than that of a round guide. It is stable and durable.
- Our creative works are compatible with most professional CAD/CAM software, as well as a wide range of free and paid graphic design programs, including AutoCAD, MasterCAM, AlphaCAM, PowerMill,ArtCAM, Fusion 360, hyperMill, UG & NX, SolidWorks, SolidCAM, BobCAD, Solid Edge, ScultpGL, K-3D, Antimony, DraftSight, CATIA, Smoothie 3D, CAMWorks, SprutCAM, and HSM.
Technical Parameters
当然，整理成标准产品参数表如下：
| Parameter | Specification |
|---|---|
| Brand | SMARTWIN CNC |
| Model | SWM-1325 |
| Working Area | 1300 × 2500 × 200mm |
| Table Size | 4 × 8 feet (48 × 96 inches, 1300 × 2500mm) |
| Repositioning Accuracy | ±0.03mm |
| Traveling Positioning Accuracy | ±0.03/300mm |
| Frame | Welded Structure |
| Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
| X, Y Structure | Hiwin Rail Linear Bearings, Rack and Pinion Drive |
| Z Structure | Ball Screw, Hiwin Rail Linear Bearings |
| Max Working Speed | 25000mm/min |
| Max Rapid Travel Rate | 33000mm/min |
| Max Power Consumption | 3.0KW (Without Spindle) |
| Spindle Speed | 0–24000RPM |
| Spindle Power | 3.0KW |
| Working Voltage | AC380V/50/60Hz, 3PH (Option: 220V) |
| Drive Motors | Stepper System |
| Operating System | DSP System (Options: NCstudio/Mach4 PC Software) |
| Flash Memory | 128M (U Disk) |
| X, Y Resolution | <0.03mm |
| Software Compatibility | Type3 / UcancameV9 Software (Option: Artcam Software) |
| Optional Parts | Air Cooling Spindle |
| Optional Parts | Vacuum Pump |
| Optional Parts | Dust Collector |
| Optional Parts | Mist-cooling System |
| Optional Parts | Yaskawa Servo Motor |
| Optional Parts | Easy Servo Motor |

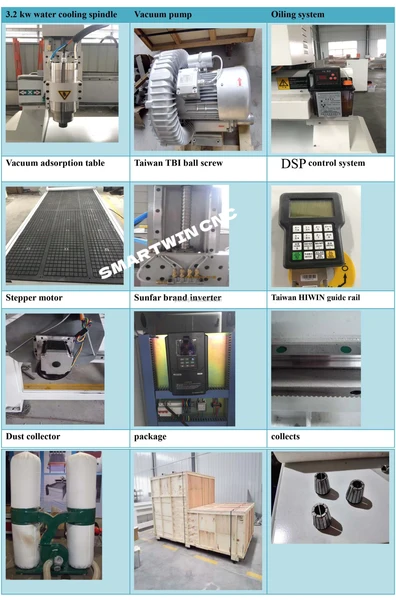

Cnc Wood Router Details
Applications of SWM-1325 CNC Router
The SWM-1325 is versatile, suitable for woodworking, sign-making, crafting furniture and decor, and prototyping small parts and models. It's also favored for creating intricate designs, hobbyist projects, and even educational use in teaching engineering and design. Additionally, it can handle metalworking with soft metals and crafting stencils and templates for art.
Woodworking Applications
It is used for wooden doors, furniture, redwood carving, decorations, wood crafts, cabinet making, and archaized furniture.
Advertising Applications
It is used for nameplates, jade articles, department brands, ABS brands, acrylics, chest brands, architectural boards and double-faced boards.
Electronic Applications
It is used for model carving, household appliance shells, circuits, insulation materials and LED screens.
Why Choose Us?
Pre-sale service
- Our company's pre-sales team has received thorough training and has a deep understanding of our product range. They can provide detailed and accurate information about product features, technical specifications, application scenarios, and comparative advantages, helping you quickly determine if our products meet your needs.
- Customization Advice:We offer personalized customization advice based on your business needs and budget. Our professional team provides tailored solutions, from product selection and configuration to functional optimization and performance enhancement, guaranteeing you get the most cost-effective products and services.
- Technical Support: Professional technicians and designers are available to create drawings for the machine you have purchased.
After-sales Service
- Product Installation: Engineers will assist you with the installation, explain essential operating procedures, and provide safety tips to ensure a smooth start.
- Remote Guidance:We provide remote installation support through video or phone. Our after-sales engineers will guide you step by step with screen sharing and real-time voice communication to ensure a smooth installation and operation.
